Franklin Electric 2445059004GS — 1/2 HP, 230V, 2-Wire 4" Submersible Motor

Genuine Franklin Electric 4″ submersible motor for residential and light commercial well systems. Corrosion-resistant, water-lubricated design with dependable starting torque and long service life.

Key Features & Benefits

• Stainless-steel construction for corrosion resistance
• Water-lubricated thrust bearing for quiet, long life
• NEMA 4″ motor mounting for broad pump compatibility
• 2-wire design — no external control box required

Applications

• Residential water wells
• Booster and irrigation sets
• Replacement motor for 4″ submersible pumps

Specifications

Model	2445059004GS
Horsepower	1/2 HP
Voltage / Frequency	230V / 60 Hz
Wiring	2-Wire (w/ ground)

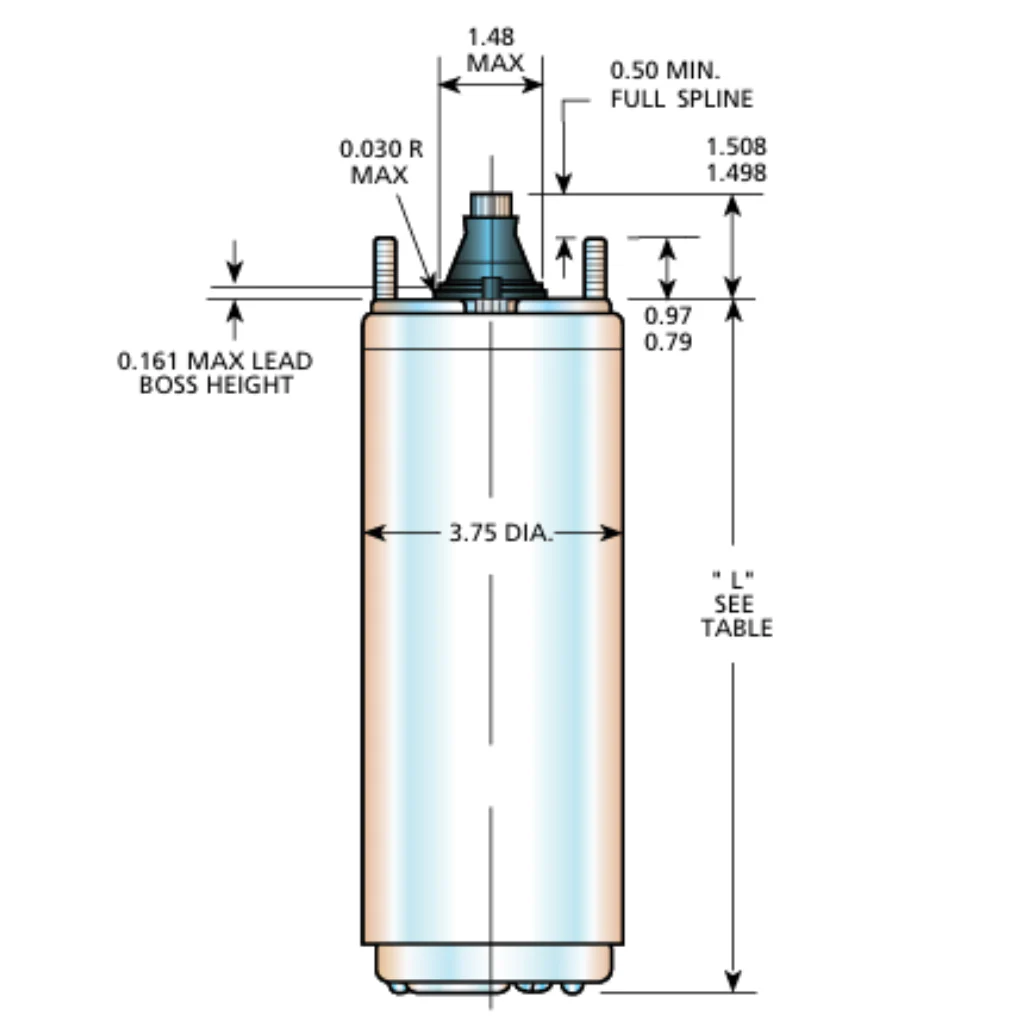

Frame	NEMA 4″
Environment	Water-lubricated, submersible



Common Questions

Q: Do 2-wire motors need a control box?
A: No. 2-wire Franklin motors do not require an external control box.

Q: Will this fit my existing 4″ pump end?
A: If your pump uses a standard NEMA 4″ motor mount, yes.

Q: Is the motor oil-filled?
A: Franklin 4″ motors are water-lubricated for long, quiet service.
