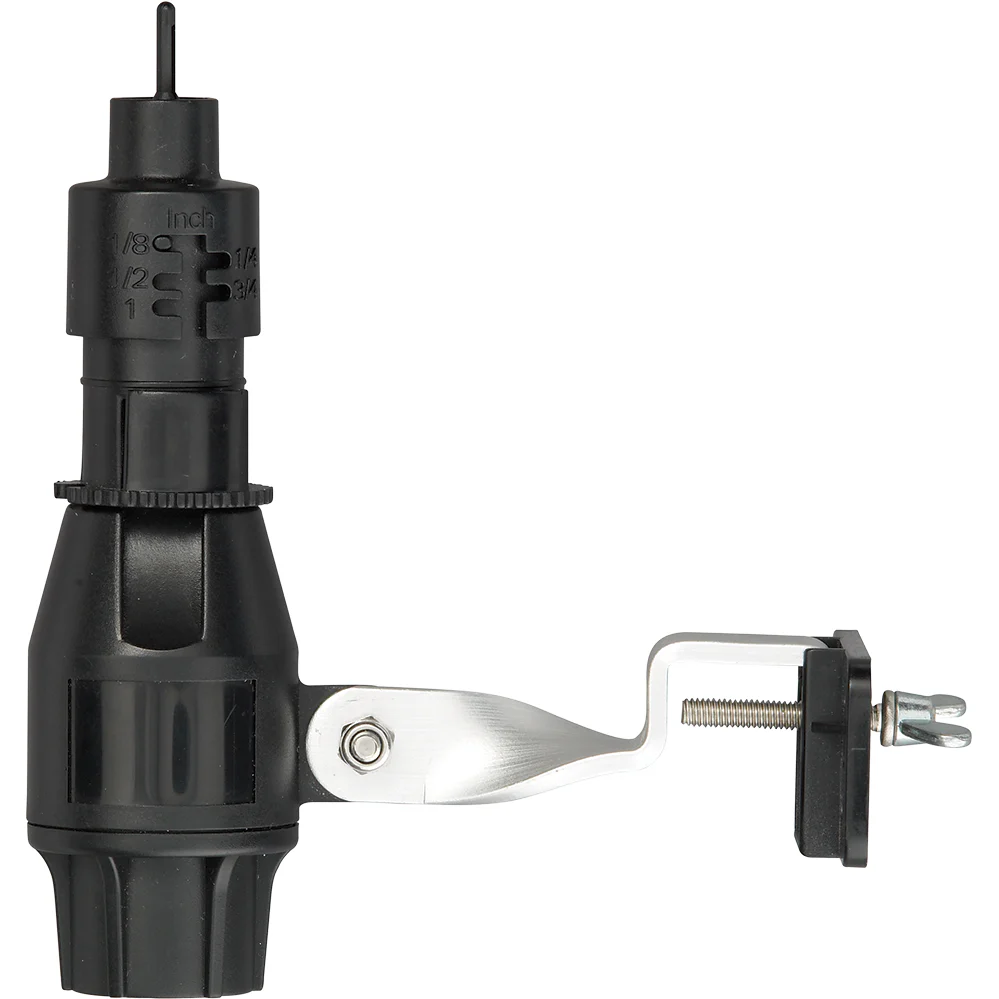

Hydro-Rain - HRC-100-RS-HW - HRC Rain Sensor Hardwire
Hydro-Rainās HRC 100 hardwire sensor is designed to save water and limit damage to foliage by turning off sprinkler systems during rainy weather. A must have for every sprinkler system the HRC 100 is easy to install and will provide years of reliable, accurate performance. Constructed of heavy-duty, UV-protected ABS, aluminum mounting bracket, and heavy-jacketed copper wire, the HRS 100 is the right choice for your sprinkler system. No other major brand in the industry makes the thermostat feature standard on every hardwire rain sensor.
FEATURES AND BENEFITS
- Quick-Set Adjustmentā1/8", 1/4", 1/2", 3/4", 1" Quick-set rainfall settings for variable climates.
- Rain Gutter Mounting BracketāNo tools required for mounting sensor to a rain gutter.
- Rain OffāVariable rainfall settings keep the sprinkler system off during rain storms and then returns the system to automatic mode
- Hygroscopic DiscsāAbsorb water to activate rain switch.
- UniversalāFor use with most brands of 24V output sprinkler controllers.
- Heavy-Duty Jacketed Wireā30 feet of connection wire included and ready for installation.
- Conduit OptionāSensor can easily be mounted to 1/2" conduit (adapter included).
- Dry VentāAllows air circulation adjustment for fast or slow dry.
- Three-Year WarrantyāHydro-Rain ensures full quality performance for the warranty period or weāll replace it.
Sensor Type: Industry-standard hygroscopic discs
Rain Sensitivity: Adjustable nominal 1-1/8" to 1" (3-25mm)
Operating Temperature: 14Ā° F~140Ā° F ( -10Ā° C~60Ā° C)
Housing Material: UV-resistant
DIMENSIONS
Height: 3Ā½" (7,62 cm)
Length: 4Ā½" (11,2 cm)
ELECTRICAL SPECIFICATION
AC Supply: 24~26VAC
Relay Contacts Output: Normal Open and Normal Close 3A@24VAC
