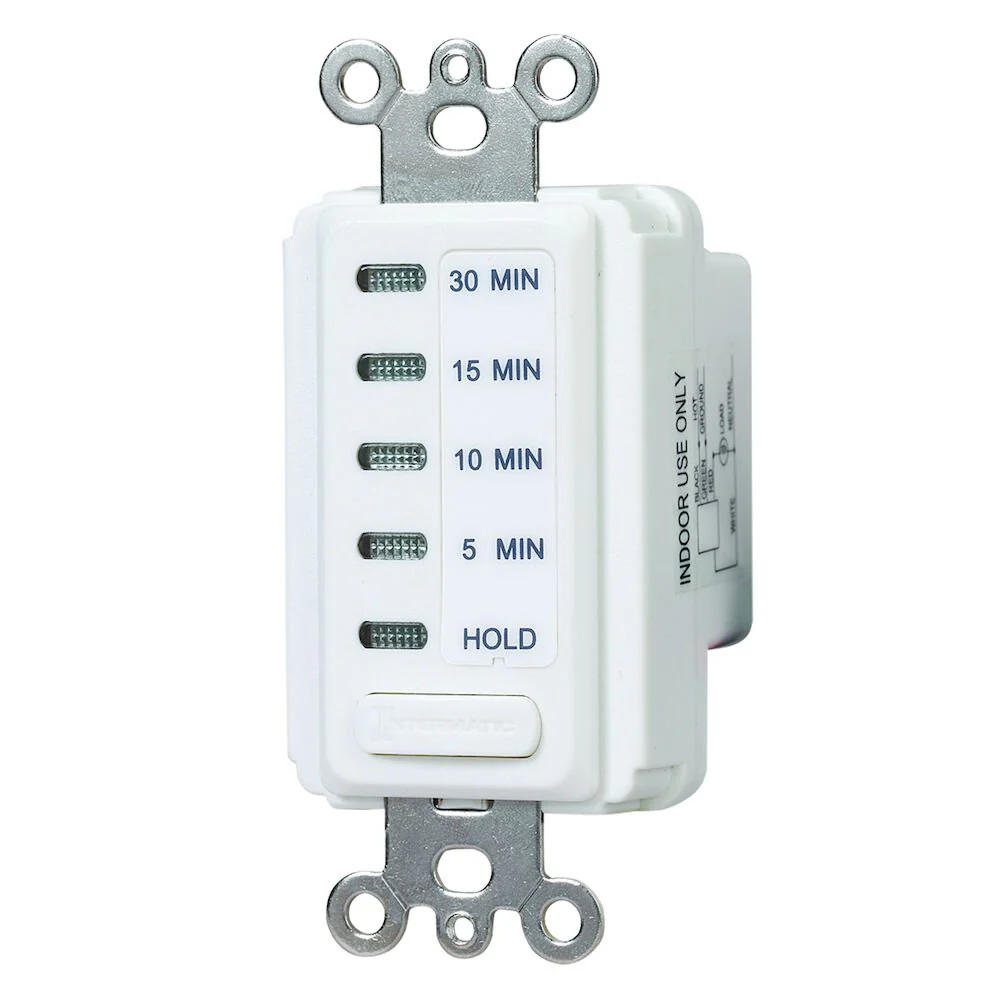

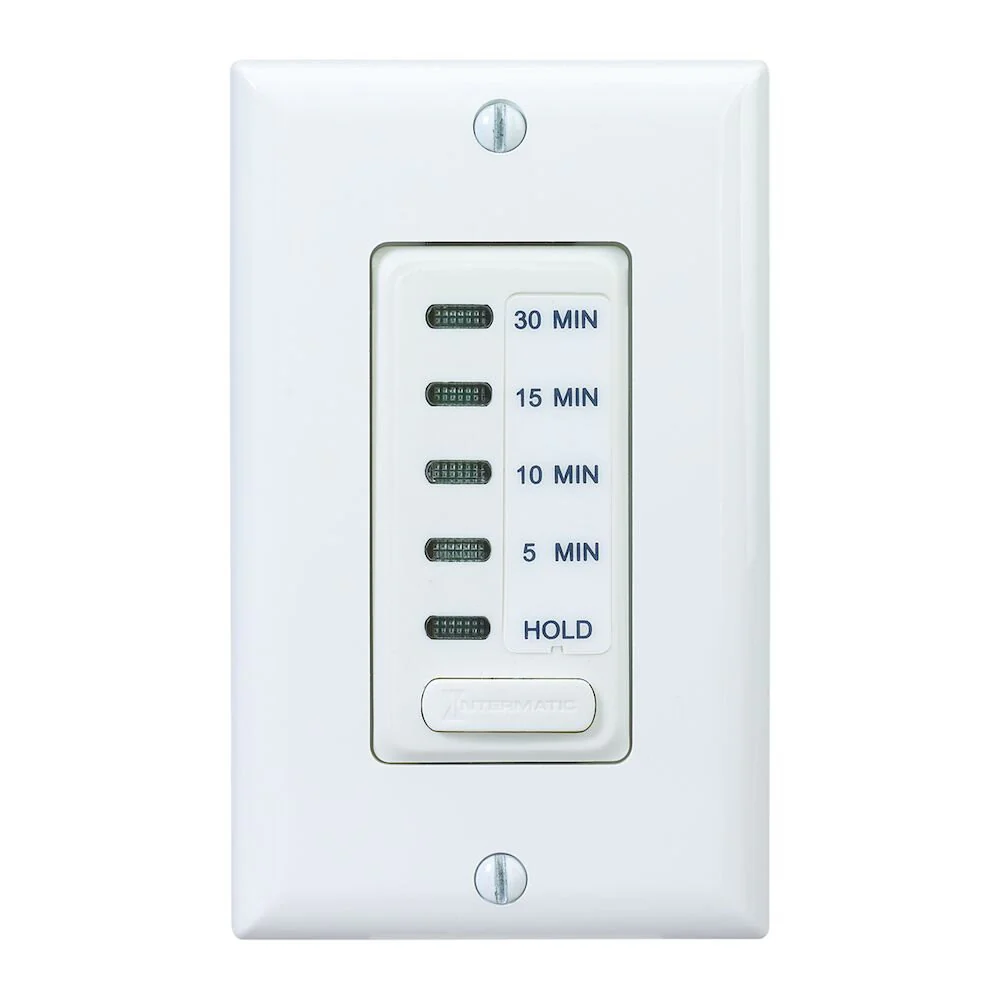

Intermatic EI200W Electronic Countdown Timer, 120 VAC, 60 Hz, Preset Times 5,10,15,30 Minute, With Hold, White

This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

• No programming required
• Provides silent operation in time ranges from five minutes to 30 minutes
• Single-button time selection, with some models having a HOLD mode, for continuous ON operation
• Replaces single-pole switches in a variety of applications
• Incandescent/fluorescent/CFL/LED compatible
• For use with decorator-style wall plate (not included)
• Requires neutral connection

Applications:

• Air Movement & Ventilation
• Indoor Lighting Control

Specifications:

• Color: White
• Operation Mode: Countdown
• Hold Mode Included: Yes
• Countdown Time: 30 min
• Neutral Connection Required: Yes
• Warranty Period: 1-Year limited
• Ballast Fluorescent: 8 A, 1000 VA
• Electronic Ballast LED: 4 A, 500 VA
• Motor Three Phase Ranges: 1/4 HP
• RoHS Certification: Yes
• Tungsten Incandescent: 1000 W
• Operating Temperature Max (°F): 104
• Operating Temperature Min (°F): 32
• Input Voltage Range(s): 120 VAC, 60 Hz
• Wiring Configurations: Single
• Wall Plate Configurations: Single-Gang
• Mechanism Type: Digital/Electrical
• Time Presets: 5 min, 10 min, 15 min, 30 min
• Application Compatibilities: CFL, Fluorescent, Incandescent, LED
• Category: Electronic Countdown Timers Web
