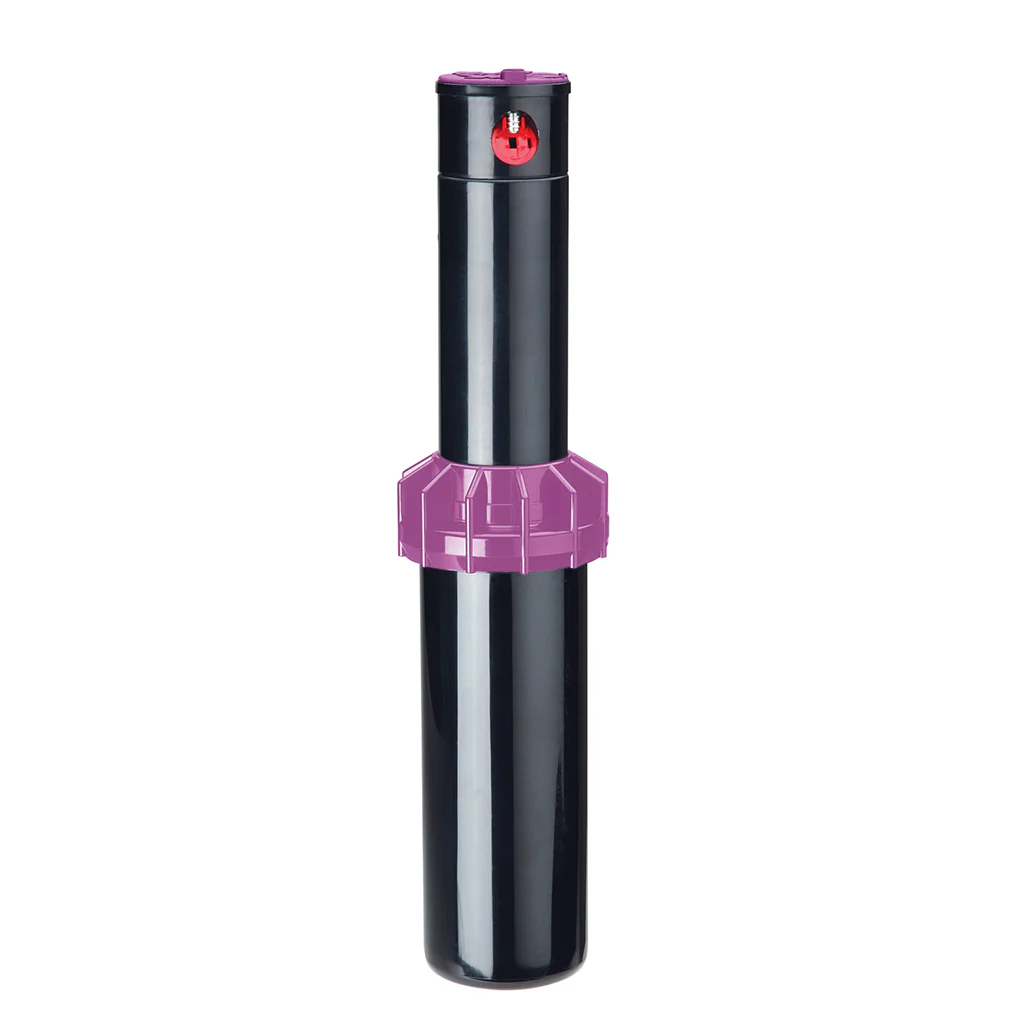

K-Rain - RPS75-RCW - Series 3/4" Rotor Purple Reclaimed Water

Product image 1

K-Rain - RPS75-RCW - Series 3/4" Rotor Purple Reclaimed Water

Spec Sheet   Install Manual

K-Rain’s RPS® 75 gear drive rotor is designed for residential and light commercial applications. The reliable, durable design is the foundation of K-Rain’s RPS Rotor line. This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS 75™ provides even water distribution.

A direct replacement for the Hunter PGP® rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP®), the RPS75® drops directly in an installed Hunter PGP® can.

Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

FEATURES AND BENEFITS:

  • Direct Replacement for Hunter® PGP®.
  • Right Position Start – Rotor rotates counterclockwise from fixed right start position.
  • Riser Fits in Existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS® 75 riser.
  • Top Adjustment – No training necessary – the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
  • Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°.
  • Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal.
  • 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
  • Ideal for Low Flow Applications.
  • Universal Adjustment Tool – Compatible with existing Hunter® products.
  • Rubber Cover – Seals out dirt and increases durability.
  • Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.
  • Five Year Limited Warranty


SPECIFICATIONS:

  • Inlet: 3/4" (1,9 cm) Threaded NPT
  • Arc Adjustment Range: 40° – 360°
  • Flow Range: .75 – 8.2 GPM (2,6 – 32,6 LPM)
  • Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bars)
  • Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr) (Depending on Spacing and Nozzle Used)
  • Overall Height (Popped Down): 7 3/8" (19,7 cm)
  • Recommended Spacing: 25' – 45' (7,6 – 13,7 m)
  • Radius: 22' – 51' (6,7 – 15,5 m)
  • Nozzle Trajectory: 26°
  • Low Angle Nozzle Trajectory: 11°
  • 8 Standard and 4 Low Angle Nozzles Included
  • Riser Height: 4" (10,2 cm)

    Spec Sheet   Install Manual

    K-Rain’s RPS® 75 gear drive rotor is designed for residential and light commercial applications. The reliable, durable design is the foundation of K-Rain’s RPS Rotor line. This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS 75™ provides even water distribution.

    A direct replacement for the Hunter PGP® rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP®), the RPS75® drops directly in an installed Hunter PGP® can.

    Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

    FEATURES AND BENEFITS:

    • Direct Replacement for Hunter® PGP®.
    • Right Position Start – Rotor rotates counterclockwise from fixed right start position.
    • Riser Fits in Existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS® 75 riser.
    • Top Adjustment – No training necessary – the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
    • Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°.
    • Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal.
    • 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
    • Ideal for Low Flow Applications.
    • Universal Adjustment Tool – Compatible with existing Hunter® products.
    • Rubber Cover – Seals out dirt and increases durability.
    • Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.
    • Five Year Limited Warranty


    SPECIFICATIONS:

    • Inlet: 3/4" (1,9 cm) Threaded NPT
    • Arc Adjustment Range: 40° – 360°
    • Flow Range: .75 – 8.2 GPM (2,6 – 32,6 LPM)
    • Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bars)
    • Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr) (Depending on Spacing and Nozzle Used)
    • Overall Height (Popped Down): 7 3/8" (19,7 cm)
    • Recommended Spacing: 25' – 45' (7,6 – 13,7 m)
    • Radius: 22' – 51' (6,7 – 15,5 m)
    • Nozzle Trajectory: 26°
    • Low Angle Nozzle Trajectory: 11°
    • 8 Standard and 4 Low Angle Nozzles Included
    • Riser Height: 4" (10,2 cm)
      $4.91

      Original: $14.03

      -65%
      K-Rain - RPS75-RCW - Series 3/4" Rotor Purple Reclaimed Water—

      $14.03

      $4.91

      Description

      Spec Sheet   Install Manual

      K-Rain’s RPS® 75 gear drive rotor is designed for residential and light commercial applications. The reliable, durable design is the foundation of K-Rain’s RPS Rotor line. This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS 75™ provides even water distribution.

      A direct replacement for the Hunter PGP® rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP®), the RPS75® drops directly in an installed Hunter PGP® can.

      Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

      FEATURES AND BENEFITS:

      • Direct Replacement for Hunter® PGP®.
      • Right Position Start – Rotor rotates counterclockwise from fixed right start position.
      • Riser Fits in Existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS® 75 riser.
      • Top Adjustment – No training necessary – the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
      • Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°.
      • Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal.
      • 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
      • Ideal for Low Flow Applications.
      • Universal Adjustment Tool – Compatible with existing Hunter® products.
      • Rubber Cover – Seals out dirt and increases durability.
      • Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.
      • Five Year Limited Warranty


      SPECIFICATIONS:

      • Inlet: 3/4" (1,9 cm) Threaded NPT
      • Arc Adjustment Range: 40° – 360°
      • Flow Range: .75 – 8.2 GPM (2,6 – 32,6 LPM)
      • Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bars)
      • Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr) (Depending on Spacing and Nozzle Used)
      • Overall Height (Popped Down): 7 3/8" (19,7 cm)
      • Recommended Spacing: 25' – 45' (7,6 – 13,7 m)
      • Radius: 22' – 51' (6,7 – 15,5 m)
      • Nozzle Trajectory: 26°
      • Low Angle Nozzle Trajectory: 11°
      • 8 Standard and 4 Low Angle Nozzles Included
      • Riser Height: 4" (10,2 cm)
