Spec Sheet

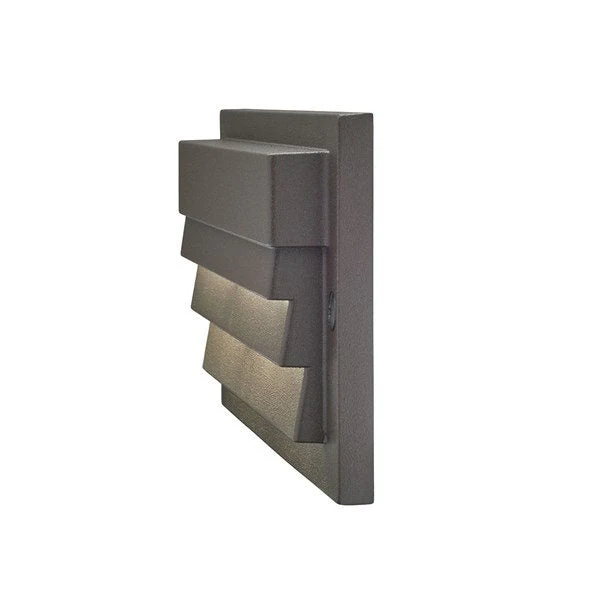

The 12V Integrated LED Louvered Surface Mount Step Light offers a low-profile construction without a junction box. This stylish design makes installation simple for retrofit or new construction.

• Small profile design for easy installation allows you to mount to surfaces like steps, decks, and retaining walls without cutting a junction box.
• Equipped with removeable mounting template for extra ease of installation.
• Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements – helping to extend the life of the product.
• Custom optics with a diffused lens provides smooth, uniform light distribution to eliminate glare and hotspots.
• 4,000-volt system surge protection protects against power surges and irregularities, especially when paired with one of our transformers
• Versatile IP67 rated design provides protection against dust particles and temporary submersion in case of flooding.
• What's in the Box: LED Step Light and two gel-filled wire nuts

Dimensions:

• Height: 3.00"

• Length: 6.00"
• Width: 0.75"


Electrical:

• Input Voltage: 12.00V
• Operating Voltage Range: 9-15 VAC
• Voltage: 12 AC/DCV

Housing:

• Primary Material: Aluminum
• Finish: Textured Architectural Bronze

Light Source:

• Delivered Lumens: 7
• Expected Life Span (Hours): 50,000
• Volt-Amperes (VA): 1.45


Mounting/Installation:

• Direct Wire: Yes
• Lead Wire Length: 84"
• Location Rating: Wet

Photometrics:

• Color Rendering Index: 80

• Delivered Efficacy (Lumens/Watt): 8

• Kelvin Temperature: 2700K
