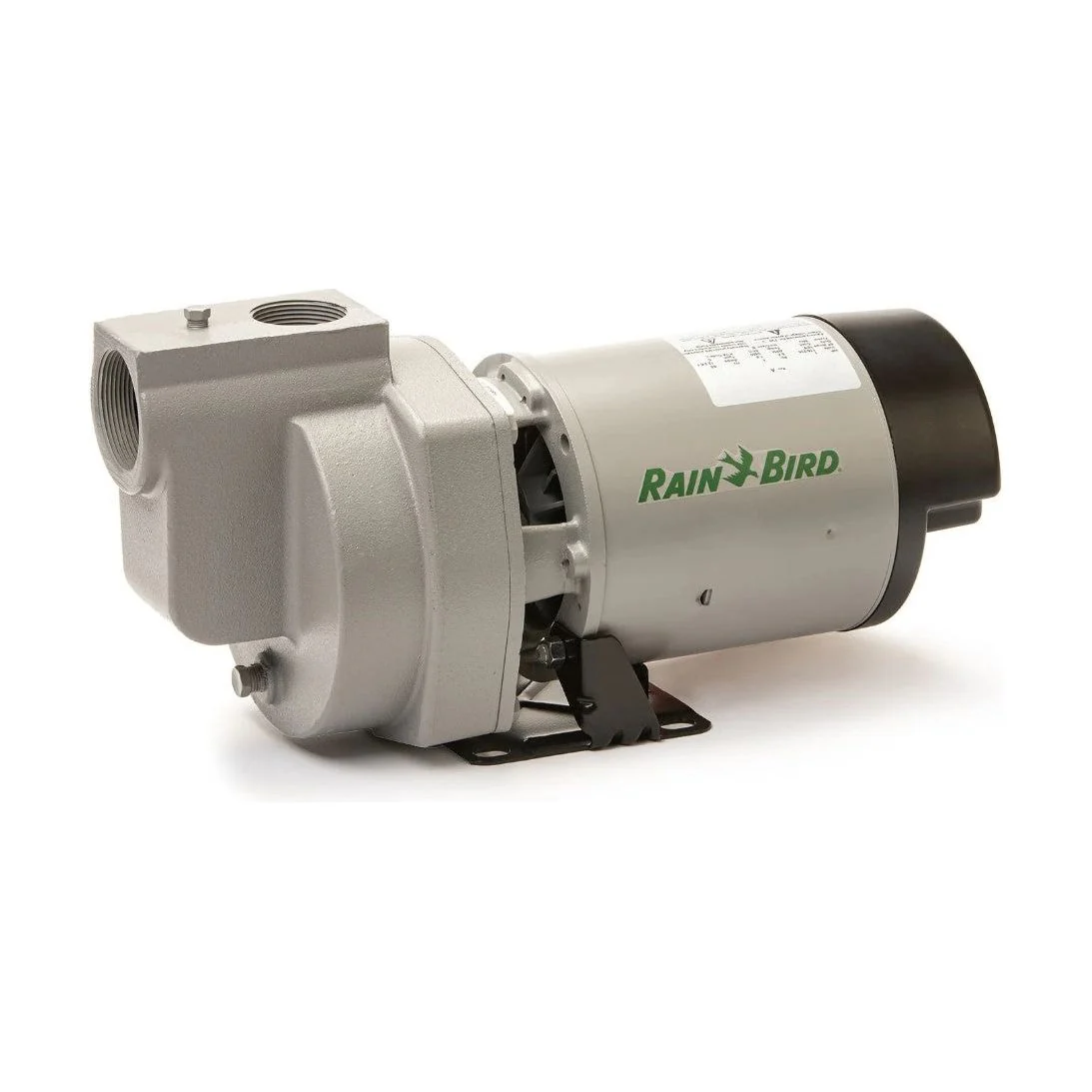

Rain Bird 1HP Self Priming Lawn Sprinkler Irrigation Pump BPUMP1HP
Built for continuous operation for lawn sprinkling and water feature applications, Rain BirdsĀ self-primingĀ centrifugal booster pumps are perfect in applications where up to 70gpm are needed. OurĀ pumps are 100% balanced at the factory for industry-leading quiet operation, and every pump is factory tested to ensure plumbing and electrical systems are performing correctly.Ā
*All pumps must be primed (filling the cavity with water) before they are first operated
Ā
Features
Quick install and fewer points of failure reducing your time on the job and callbacks
- Quick self-priming operation for lawn irrigation *All pumps must be primed (filling the cavity with water) before they are first operated
- Standard 2" Inlet reduces the need for additional pipe adapters and potential points of failure
- 115/230 dual voltage motor for maximum flexibility
Built tough in the USA using a majority of U.S. content
- Heavy-duty cast-iron construction
- Motor featuring capacitor assisted start up and 2 oversized self-lubricating ball bearings for quiet continuous operation
- Chemical and abrasion resistant fiberglass reinforced thermoplastic impeller
- Cool running motor is engineered for continuous operation in ambient temperatures up to 145 FĀ (65c)
Constructed with ease of maintenance in mind
- 4 bolts remove the motor for easy maintenance without disconnecting piping
- Easy access drain plug
Specs
- Impeller: Fiberglass reinforced thermoplastic
- Flows To: 66 GPM (250 LPM)
- Inlet and Outlet: 2" FNPT suction port / 1Ā½" FNPT discharge port
- One-year trade warranty

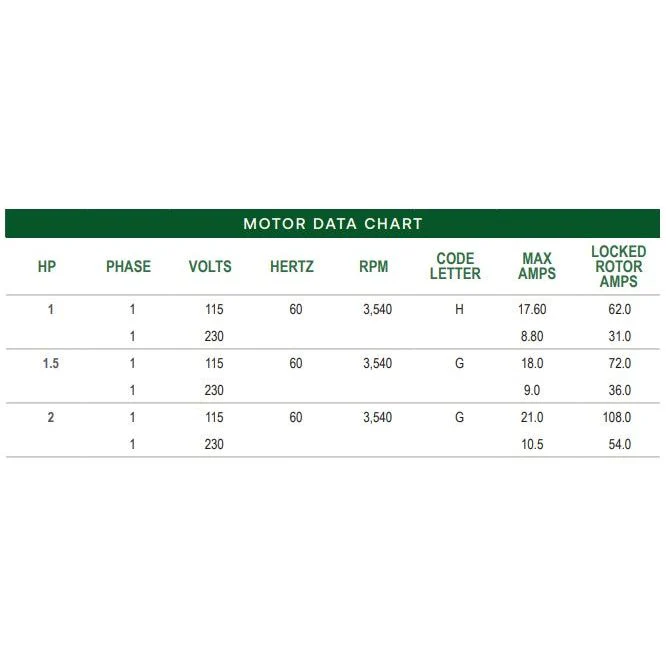

Motor Specs
- Single Phase
- 115/230 dual voltage motor
- 60 Hertz
- 3,540 RPM
- Max Amps: 230v: 9amps | 115v: 18amps
Applications
- Well
- Buried Cistern
- Lake and Ditchwater
- Gravity-fed above ground water source
- Boosting municipal water source
- Lawn sprinkling
- Irrigation
- Water transfer
- Ground water wells
- Delivering from surface water, such as lakes, ponds or streams
Ā
Model Comparison
Ā
- BPUMP1HP: 1HP Booster Pump
- BPUMP1-5HP: 1.5HP Booster Pump
- BPUMP2HP: 2HP Booster Pump
