Unique Lighting Systems - NSTR-NL - North Star Odyssey Series No Lamp
Spec Sheet

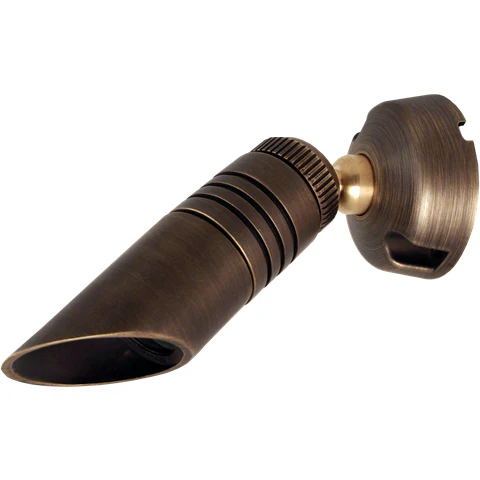

The North Star is ideal when downlighting is challenged by a small area. Featuring a double o-ring shroud, the North Star is enhanced by a revolutionary ball and joint swivel mount allowing a 360° rotation, thus giving 100% accuracy when dialing in the proper lighting angle. The petite die cast brass body houses a 2W MR11 FLEX GOLD™ Series LED lamp.
The North Star is the perfect fixture for graze lighting, cross lighting or simple accent lighting.
| Body | Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires |
| Gasket | Machined brass, exclusive ball and joint. The 360° Orbital Mount™ allows for perfect directional fine tuning. |
| Shroud | Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory. |
| Lens | Comes with a complete set of optical designer lenses including spread lens, frosted, hex cell and blue lens for moonlighting effect. |
| Lamp | For use with a FLEX GOLD™ Series MR11 2W LED Lamps or halogen lamp up to 20W. |
| Electrical Requirement | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V. |
| Lamp Connection | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Mounting Hardware | Cast brass dome mount included. |
Specifications:
- Solid cast brass construction
- High temperature silicone o-rings
- Specification grade, beryllium copper socket
- Premium grade direct burial cable
- AMC - Anti-Moisture Connections
- Revolutionary ball and joint Orbital Mount allowing a 360° rotation
- Complete lens set included
- 2W max. LED lamp / 20W max. halogen
- Cast brass dome mount
- Weathered brass finish standard
- Limited lifetime warranty
Dimensions:
- Length: 5.5"
- Width: 1.6"
Spec Sheet
