Rain Bird  XFS0912500 Sub-Surface Dripline

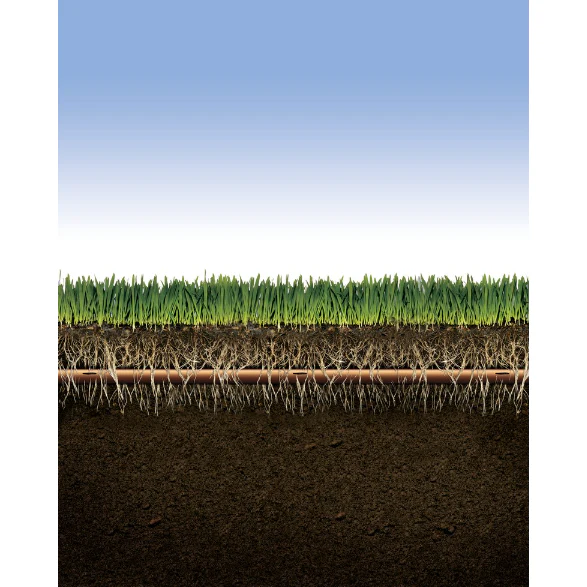

Enjoy outstanding water efficiency and root intrusion protection with the Rain Bird XFS0912500 XFS Sub-Surface Dripline, the industry's leading solution for subsurface irrigation. This advanced dripline features Rain Bird’s patented Copper Shield Technology, which releases copper ions to protect the emitters from root intrusion without the use of chemicals, ensuring years of low-maintenance, reliable operation. The pressure-compensating emitters deliver a consistent 0.9 GPH flow rate every 12 inches, guaranteeing uniform watering from beginning to end, regardless of elevation changes or pressure fluctuations.

Designed for maximum flexibility, the XFS dripline is easy to install in turf, planting beds, and irregularly shaped areas where traditional sprinklers are inefficient. The dual-layered tubing provides exceptional resistance to kinking, chemicals, and UV damage. This 500-foot coil is the professional's choice for creating a healthy, vibrant landscape while conserving water by delivering it directly to the root zone, eliminating evaporation and runoff.

 XFS0912500 Features:

• XFS Sub-Surface Dripline - 0.9 GPH, 12 in. Spacing, 500 ft. Coil
• Patent-pending Copper Shield™ Technology protects emitters from root intrusion
• Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
• Low profile emitter design reduces in-line pressure loss, allowing longer lateral runs.
• Ideal for on-surface and sub-surface applications.
• Accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Insert Fittings and 17mm insert fittings
• Use an Air/Vacuum Relief Valve Kit when installation is below soil
• The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 8.5 to 60 psi
• Copper-colored, dual-layered tubing provides unmatched resistance to chemicals, algae growth and UV damage
• Proprietary emitter design resists clogging by use of an extra-wide flow path combined with self-flushing action

 XFS0912500 Specs:

• Application: On Surface, Sub-Surface
• Features: Copper Shield Root Intrusion Protection, Extra Flexible, Self-extracting Coil
• Emitter Spacing: 12 in
• Tubing Diameter: 1/2 in
• Flow Rate: 0.9 gph
• Specifications:
• Outside diameter: 0.634" (16.1 mm)
• Inside diameter: 0.536" (13.6 mm)
• Wall thickness: 0.049" (1.2 mm)
• Use with XF Dripline Insert Fittings, Easy Fit Compression Fittings, and 17mm Insert Fittings.
• Operating Range:
• Pressure: 8.5 to 60 psi (0.58 to 4.14 bar)
• Temperature: Up to 100° F (43.3 C) water; up to 125 F (51.7° C) ambient
• Required filtration: 120 mesh
